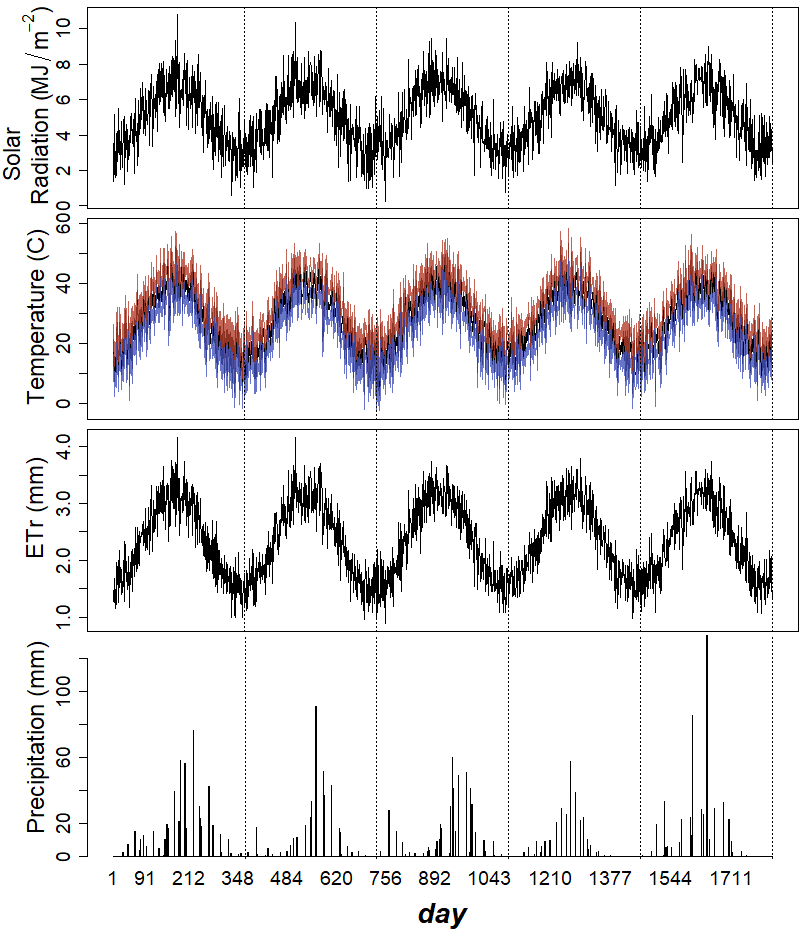

3  Example of simulation outputs of the Weather model for 5 years

Choose file format for generated figures:

output_dir <- "output"
plot_file_format <- c("png", "eps")[1] # modify index number to change format

Load source file containing the R implementation of the Weather model:

source("source/weatherModel.R")

Initialisation using the default parametrisation, based on data from Rakhigarhi (example location, see Fig. 1):

SEED <- 0
YEAR_LENGTH <- 365 # ignoring leap year adjustment
NUM_YEARS <- 5
NUM_DAYS <- NUM_YEARS * YEAR_LENGTH

weather_model <- initialise_weather_model(seed = SEED, year_length = YEAR_LENGTH)

Show table with parameter values:

source("source/extract_params.R")

# Extract initial parameters
initial_params <- list(
  names = c("seed", "year_length", "albedo", "southern_hemisphere"),
  values = unlist(weather_model$PARAMS[1:4])
)

# Extract remaining parameters
remaining_params <- lapply(names(weather_model$PARAMS)[5:length(weather_model$PARAMS)],
                           function(name) extract_params(weather_model$PARAMS[[name]], name))

# Combine all parameters
all_params <- list(
  names = c(initial_params$names, unlist(lapply(remaining_params, `[[`, "names"))),
  values = c(initial_params$values, unlist(lapply(remaining_params, `[[`, "values")))
)

# Create the table
params_values <- cbind(all_params$names, all_params$values)
row.names(params_values) <- NULL
knitr::kable(params_values,
             format = "html",
             col.names = c("parameter", "values"),
             align = c("l", "r"))

parameter	values
seed	0
year_length	365
albedo	0.4
southern_hemisphere	0
temperature - annual_max	40
temperature - annual_min	15
temperature - daily_fluctuation	5
temperature - daily_lower_dev	5
temperature - daily_upper_dev	5
solar - annual_max	7
solar - annual_min	3
solar - daily_fluctuation	1
precipitation - annual_sum_mean	400
precipitation - annual_sum_sd	130
precipitation - plateau_value_mean	0.1
precipitation - plateau_value_sd	0.05
precipitation - inflection1_mean	40
precipitation - inflection1_sd	20
precipitation - rate1_mean	0.15
precipitation - rate1_sd	0.02
precipitation - inflection2_mean	200
precipitation - inflection2_sd	20
precipitation - rate2_mean	0.05
precipitation - rate2_sd	0.01
precipitation - n_samples_mean	200
precipitation - n_samples_sd	5
precipitation - max_sample_size_mean	10
precipitation - max_sample_size_sd	3

Run model:

weather_model <- run_weather_model(weather_model, num_years = NUM_YEARS)

Set colours for maximum and minimum temperature:

max_temperature_colour = hsv(7.3/360, 74.6/100, 70/100)

min_temperature_colour = hsv(232/360, 64.6/100, 73/100)

Plot time-series:

# Helper functions
plot_solar_radiation <- function(solar_radiation, num_days, year_length) {
    plot(1:num_days, solar_radiation,
         type = "l", xlab = "", xaxt = 'n', ylab = "")
    mark_end_years(num_days, year_length = year_length)
}

plot_temperature <- function(temperature, max_temperature_colour, min_temperature_colour, num_days, year_length) {
    plot(1:num_days, temperature,
         type = "l", xlab = "", xaxt = 'n', ylab = "",
         ylim = c(floor(min(weather_model$daily$temperature_min)),
                  ceiling(max(weather_model$daily$temperature_max))))
    lines(1:num_days, weather_model$daily$temperature_max,
          col = adjustcolor(max_temperature_colour, alpha.f = 0.8))
    lines(1:num_days, weather_model$daily$temperature_min,
          col = adjustcolor(min_temperature_colour, alpha.f = 0.8))
    mark_end_years(num_days, year_length = year_length)
}

plot_ETr <- function(ETr, num_days, year_length) {
    plot(1:num_days, weather_model$daily$ETr, type = "l",
         ylab = "", xlab = "", xaxt = 'n')
    mark_end_years(num_days, year_length = year_length)
}

plot_precipitation <- function(precipitation, num_days, year_length) {
    par(mar = c(2, 1, 0.1, 0.1))
    barplot(weather_model$daily$precipitation,
            ylab = "", xlab = "", xaxt = 'n')
    mark_end_years(num_days, year_length = year_length, offset = 1.2)
    abline(v = num_days * 1.2, lty = 3)
}

plot_time_axis <- function(num_days, graphic_scale, font_rescale, margin_text_rescale) {
    par(mar = c(1, 1, 0, 0.1))
    plot(c(1, num_days), c(0, 1), ann = FALSE, bty = 'n', type = 'n', xaxt = 'n', yaxt = 'n')
    axis(3, at = 1:num_days, tck = 1, lwd = 0, line = axis_line)
    mtext("day", side = 1, line = x_margin_line,
          font = 4, cex = graphic_scale * (1 + font_rescale + margin_text_rescale))
}

# Main plotting function
plot_weather_simulation <- function(weather_model, num_days, year_length, graphic_scale, font_rescale, axis_text_rescale, margin_text_rescale, max_temperature_colour, min_temperature_colour) {
    layout(matrix(c(1:10),
                  nrow = 5, ncol = 2, byrow = FALSE),
           widths = c(1, 10),
           heights = c(10, 10, 10, 12, 2))

    y_labs <- c(expression(paste(
        "    Solar\nRadiation (", MJ/m^-2, ")")),
        "Temperature (C)", "ETr (mm)", "Precipitation (mm)")

    par(cex = graphic_scale)

    # First column
    par(mar = c(0, 0, 0, 0))
    for (i in 1:4) {
        plot(c(0, 1), c(0, 1), ann = FALSE, bty = 'n', type = 'n', xaxt = 'n', yaxt = 'n')
        text(x = 0.5, y = 0.5 + (i > 2) * 0.1, font = 4,
             cex = graphic_scale * (0.6 + 0.1 * (i > 1) + font_rescale + margin_text_rescale),
             srt = 90,
             labels = y_labs[i])
    }
    plot(c(0, 1), c(0, 1), ann = FALSE, bty = 'n', type = 'n', xaxt = 'n', yaxt = 'n')

    # Second column
    par(mar = c(0.2, 1, 0.5, 0.1), cex.axis = graphic_scale * (0.6 + axis_text_rescale))

    # 1: Solar radiation
    plot_solar_radiation(weather_model$daily$solar_radiation, num_days = num_days, year_length = year_length)
    # 2: Temperature
    plot_temperature(weather_model$daily$temperature, num_days = num_days, year_length = year_length,
                     max_temperature_colour = max_temperature_colour, min_temperature_colour = min_temperature_colour)
    # 3: Reference evapotranspiration
    plot_ETr(weather_model$daily$ETr, num_days = num_days, year_length = year_length)
    # 4: Precipitation
    plot_precipitation(weather_model$daily$precipitation, num_days = NUM_DAYS, year_length = year_length)

    # 5: x-axis title
    plot_time_axis(num_days = num_days, graphic_scale = graphic_scale, font_rescale = font_rescale, margin_text_rescale = margin_text_rescale)
}

# Main execution
plot_name <- file.path(output_dir, paste0("Fig3-weather_modelExample.", plot_file_format))

if (plot_file_format == "png") {
  graphic_scale <- 1
  font_rescale <- 1
  axis_text_rescale <- 1
  margin_text_rescale <- 0.3
  axis_line <- -1
  x_margin_line <- -0.3
  png(plot_name, width = graphic_scale * 800, height = graphic_scale * 930)
} else if (plot_file_format == "eps") {
  graphic_scale <- 1.2
  font_rescale <- 0.5
  axis_text_rescale <- -0.1
  margin_text_rescale <- -0.3
  axis_line <- 0
  x_margin_line <- -1
  extrafont::loadfonts(device = "postscript")
  grDevices::cairo_ps(filename = plot_name, pointsize = 12,
                      width = graphic_scale * 6, height = graphic_scale * 7,
                      onefile = FALSE, family = "sans")
} else {
  stop("Unsupported file format")
}

plot_weather_simulation(weather_model, num_days = NUM_DAYS, year_length = YEAR_LENGTH,
                        graphic_scale = graphic_scale, font_rescale = font_rescale,
                        axis_text_rescale = axis_text_rescale, margin_text_rescale = margin_text_rescale,
                        max_temperature_colour = max_temperature_colour, min_temperature_colour = min_temperature_colour)
dev.off()

svg
  2

knitr::include_graphics(plot_name)
